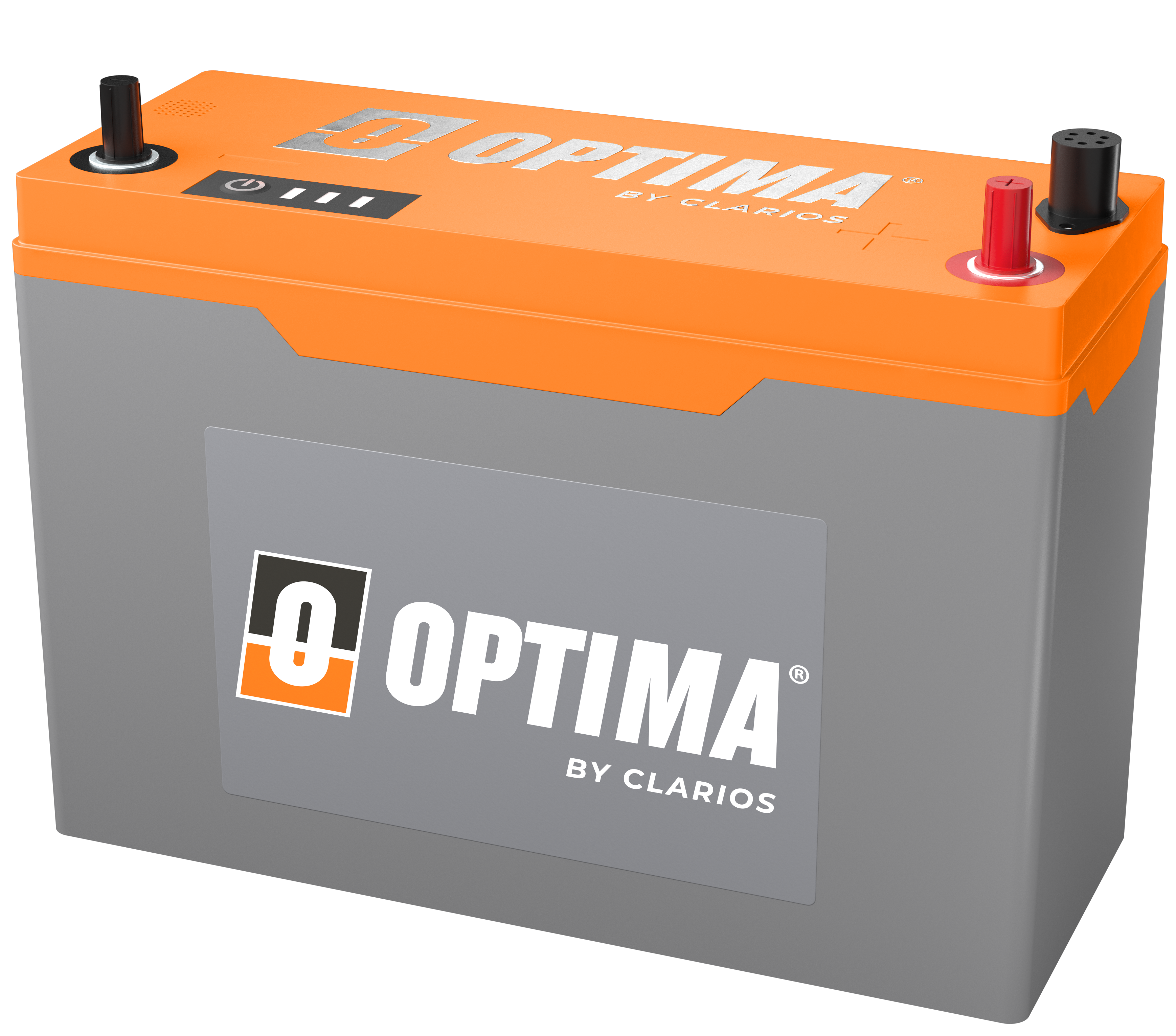

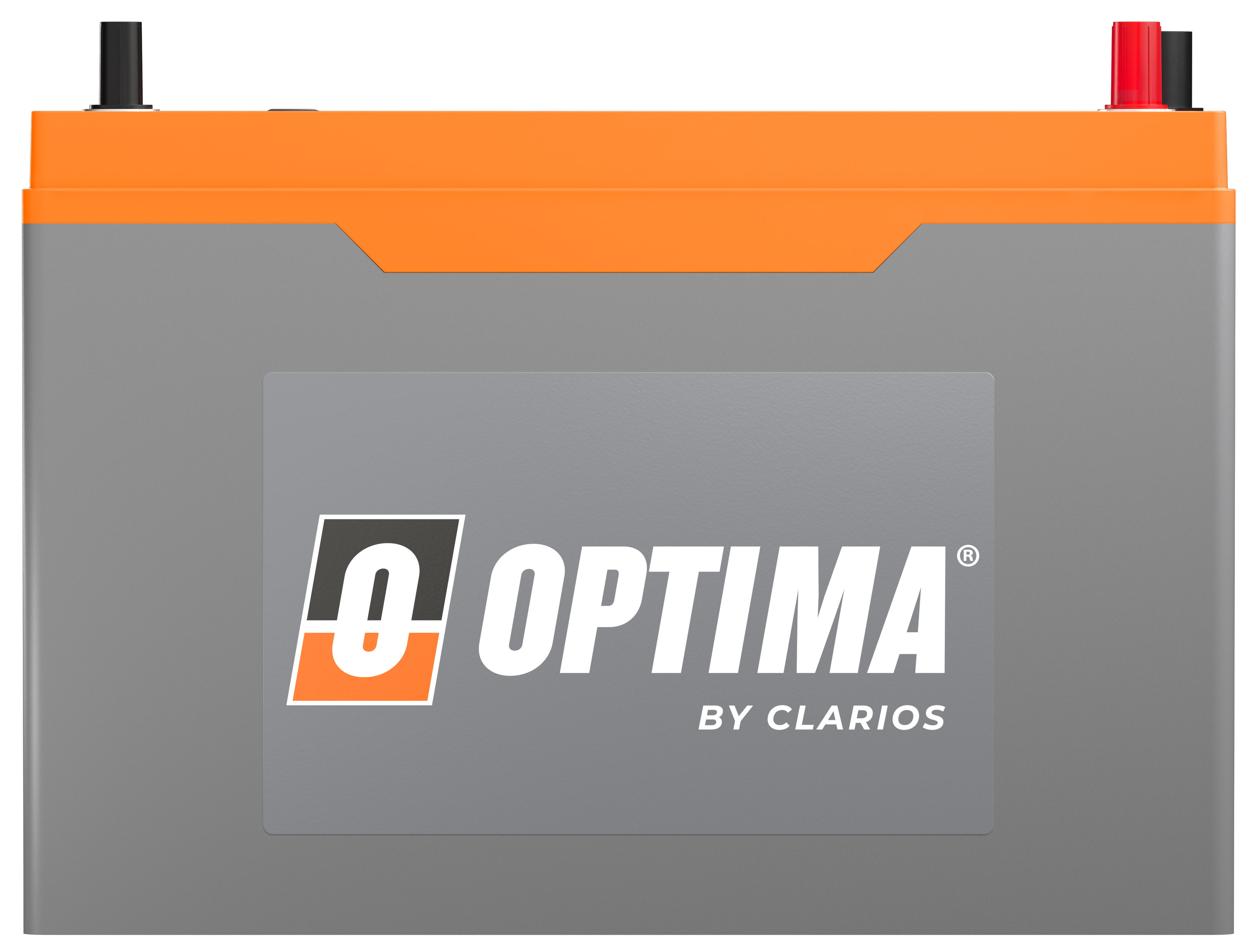

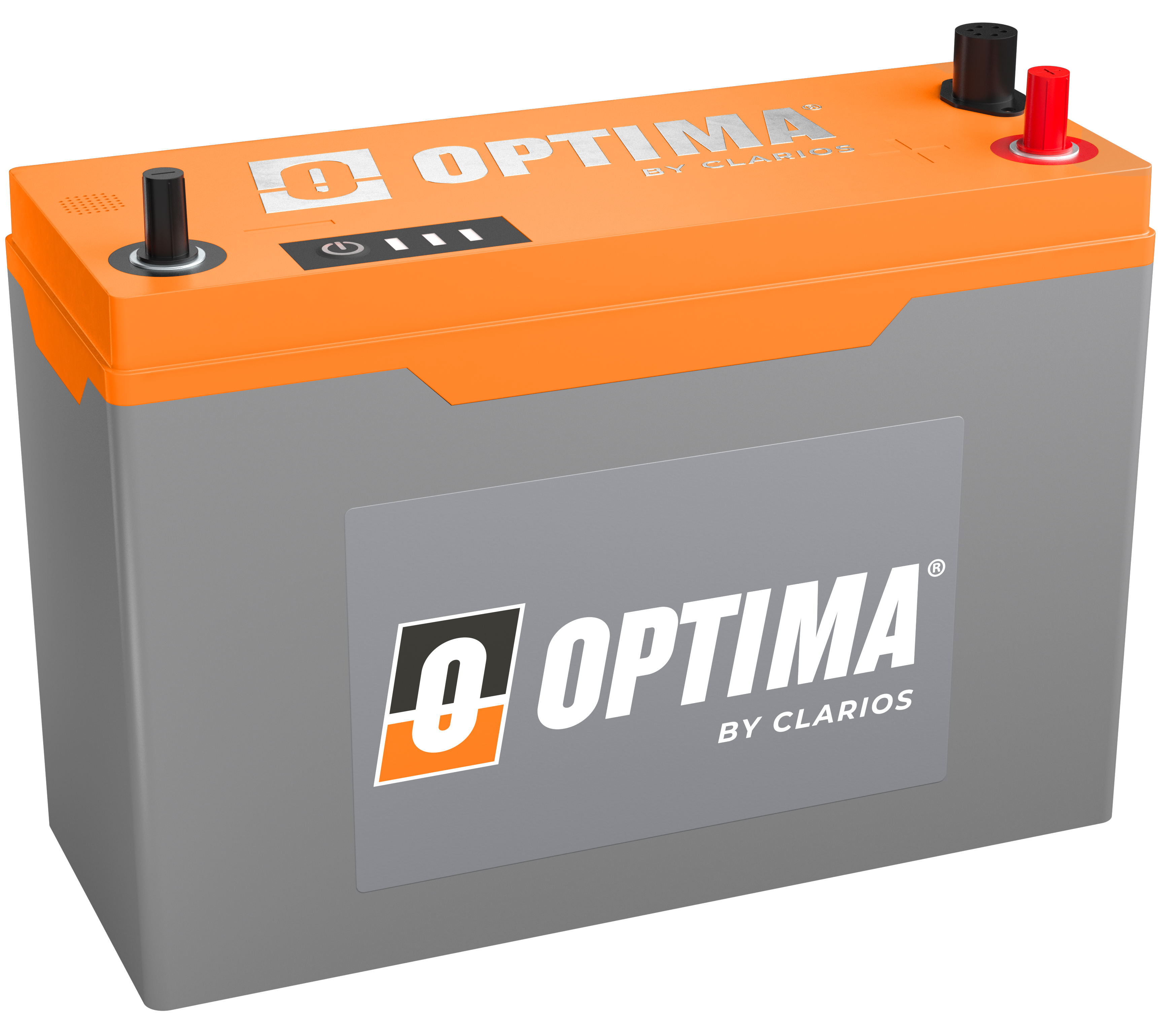

ORANGETOP™ ORB20
$1499.99
OPTIMA ORANGETOP™ Lithium Racing Battery
- Dual-purpose racing battery for both engine-starting and deep-cycle applications
- 1000A cranking power at 0°F, with extreme performance down to -20°F
- Extreme light weight at only 9.2lb
- 22Ah capacity
- FIA killswitch and 12V/15A permanent power compliant
- Integrated advanced CANBUS (Bosch™ protocol) communications of battery parameters and state
- Industry-leading communications via (switchable) Bluetooth app to displays battery status including health, state of charge and usage, current, temperature and alarms for BMS functions.
- Advanced microprocessor-controlled battery management system (BMS) automatically monitors and controls all functions.
- BMS-balanced cell state of charge for improved performance and extended life span.
- On-battery controls and status LEDs
- Compatible with vehicle charging systems/alternators up to 350 amps
- This battery has a lowered undervoltage threshold intended to supply power for an extended duration in the event of charging system failure, and therefore DOES NOT have OPTIMA CPR built-in jump start capability
- Robust design with industry-leading vibration, dust and water resistance.
- Integrated protection from alternator "load dump" in the event of BMS disconnect.
- Optional POWERLINK system for convenient battery control, state-of-charge indication and an easier way to connect your charger
- A lithium charger, or lithium charging algorithm, must be used for charging lithium batteries.
- Normally, no charging system or other modifications are required for use in cars and trucks
WARNING! Cancer and Reproductive Harm : www.p65warnings.ca.gov
Free Shipping
Make sure it fits! Add your battery.
-+
Coming soon
ADD TO LIST
| application: | CAR / TRUCK |
| technology: | LITHIUM (LiFePO4) |
| battery type: | YELLOWTOP |
| model: | ORB20 |
| c20 capacity: | 22 Ah |
| height: | 6.65 in. (169mm) |
| width: | 3.94 in. (100mm) |
| length: | 9.8 in. (249mm) |
| weight: | 9.2 LB |
| cca (li) / starting power (0°f, 5 seconds): | 1000A |
| max charging current (continuous): | 350A |
| operating/discharge temp limits: | -40°F to 185F (-40°C to 85°C) |
| charging temp limits: | -40°F to 185F (-40°C to 85°C) |
| recommended storage temperature: | 0°C to 30°C |
| min/max storage temperature: | -40°F to 185F (-40°C to 85°C) |
| nominal voltage: | 12.8 V |
| recommended charging voltage: | 14.4 V |
| voltage at 100% state-of-charge: | 14.0 V |
OPTIMA WARRANTY INFORMATION
SPECS
| application: | CAR / TRUCK |
| technology: | LITHIUM (LiFePO4) |
| battery type: | YELLOWTOP |
| model: | ORB20 |
| c20 capacity: | 22 Ah |
| height: | 6.65 in. (169mm) |
| width: | 3.94 in. (100mm) |
| length: | 9.8 in. (249mm) |
| weight: | 9.2 LB |
| cca (li) / starting power (0°f, 5 seconds): | 1000A |
| max charging current (continuous): | 350A |
| operating/discharge temp limits: | -40°F to 185F (-40°C to 85°C) |
| charging temp limits: | -40°F to 185F (-40°C to 85°C) |
| recommended storage temperature: | 0°C to 30°C |
| min/max storage temperature: | -40°F to 185F (-40°C to 85°C) |
| nominal voltage: | 12.8 V |
| recommended charging voltage: | 14.4 V |
| voltage at 100% state-of-charge: | 14.0 V |
